DebugOverlay

Setup

Enable the overlay by setting Debug: true in your AppConfig. That’s it — layout.NewApp wires the rest automatically.

app := layout.NewApp(layout.AppConfig{
    Debug: true,
    // DebugKey defaults to Ctrl+D; override if needed:
    // DebugKey: tcell.KeyCtrlF1,
})

When Debug is true, pressing Ctrl+D pushes the overlay onto the page stack. Pressing Esc inside the overlay pops it and returns to the previous view.

Key bindings

Key	Action
b	Toggle filter: binding source
t	Toggle filter: theme source
n	Toggle filter: nav source
a	Toggle filter: async source
i	Toggle filter: input source
e	Toggle filter: effect source
c	Clear all source filters
p	Pause / resume live updates
x	Clear the event list
Esc	Close the overlay

Multiple source filters can be active at once; only events matching any active filter are shown. The title bar reflects the current filter set and paused state.

Notes

• The overlay enables the event bus on open and restores its prior state on close, so it is safe to open even if you did not call bus.SetEnabled(true) yourself.
• Recent events captured before the overlay opened are backfilled from the ring buffer on start.
• The overlay is constructed with NewDebugOverlay(0) internally; the zero capacity defaults to 500 events.

catppuccin-frappecatppuccin-lattecatppuccin-macchiatocatppuccin-mochadraculadracula-lighteverforest-darkeverforest-lightgithub-darkgithub-lightgruvbox-darkgruvbox-lightkanagawamonokainordonedarkonelightrosepinerosepine-dawnrosepine-moonsolarized-darksolarized-lighttokyonight-daytokyonight-moontokyonight-nighttokyonight-storm

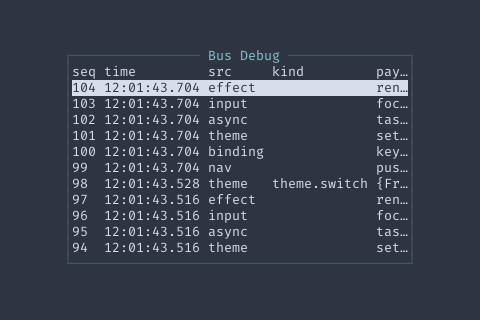

DebugOverlay is a runtime view of bus events. Subscribes to bus.Default() while active and renders the most recent events in a table. Supports source-letter filters (b/t/n/a/i/e for binding/theme/nav/async/input/effect) toggled by the corresponding key. 'c' clears the filter, 'p' pauses live updates, 'x' clears the table. The overlay enables the bus on Start and restores its prior state on Stop, so callers do not need to manage bus.SetEnabled themselves.

Constructor func NewDebugOverlay(capacity int) *DebugOverlay

Usage

ExampleDebugOverlay constructs the bus-event inspector directly. In a real app you rarely do this — set AppConfig{Debug: true} and press Ctrl+D, which builds and wires the overlay (including SetOnClose to pop the page) for you.

overlay := components.NewDebugOverlay(0)
overlay.SetOnClose(func() {
  fmt.Println("closed")
})

fmt.Println(overlay != nil)

Methods

Method	Signature	Description
Base	func (d *DebugOverlay) Base() *ComponentBase	Base returns the component base for nav lifecycle integration.
Hints	func (d *DebugOverlay) Hints() []KeyHint	Hints implements nav.Component.
Name	func (d *DebugOverlay) Name() string	Name implements nav.Component.
SetOnClose	func (d *DebugOverlay) SetOnClose(fn func()) *DebugOverlay	SetOnClose registers a callback invoked when the user presses Escape. The application root typically wires this to nav.Pages.Pop.
Start	func (d *DebugOverlay) Start()	Start implements nav.Component lifecycle.
Stop	func (d *DebugOverlay) Stop()	Stop implements nav.Component lifecycle.

Types

type ComponentBase ComponentBase wraps a tview.Primitive and provides nav.Component implementation. Use as a field (composition), not embedded, for type-safe access to the underlying primitive. Example: type MyView struct { base *ComponentBase table *Table } func NewMyView() *MyView { table := NewTable() v := &MyView{table: table} v.base = NewComponentBase(table). SetName("my-view"). SetHints([]KeyHint{{Key: "Enter", Description: "Select"}}). SetOnStart(v.loadData) return v }

type KeyHint struct KeyHint represents a single key binding hint.

Field	Type	Description
Key	string	e.g., "Enter", "Esc", "Space", "j/k"
Description	string	e.g., "Select", "Close", "Toggle"
